OCHAIN | R
OCHAIN | R
Attention: The indicated price does not include import taxes of various countries
Couldn't load pickup availability

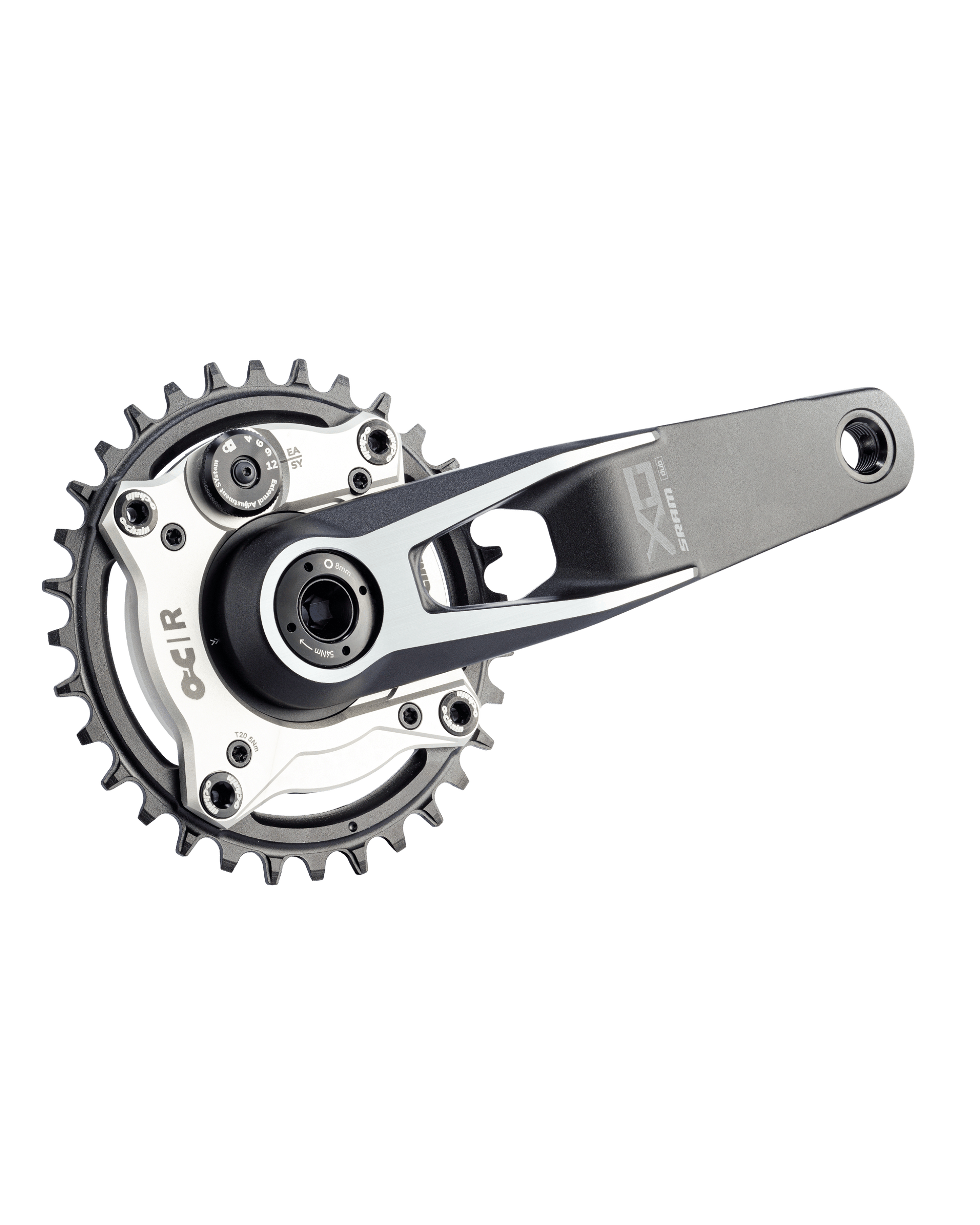

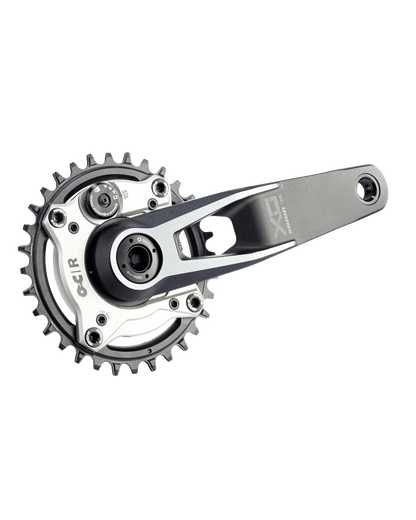

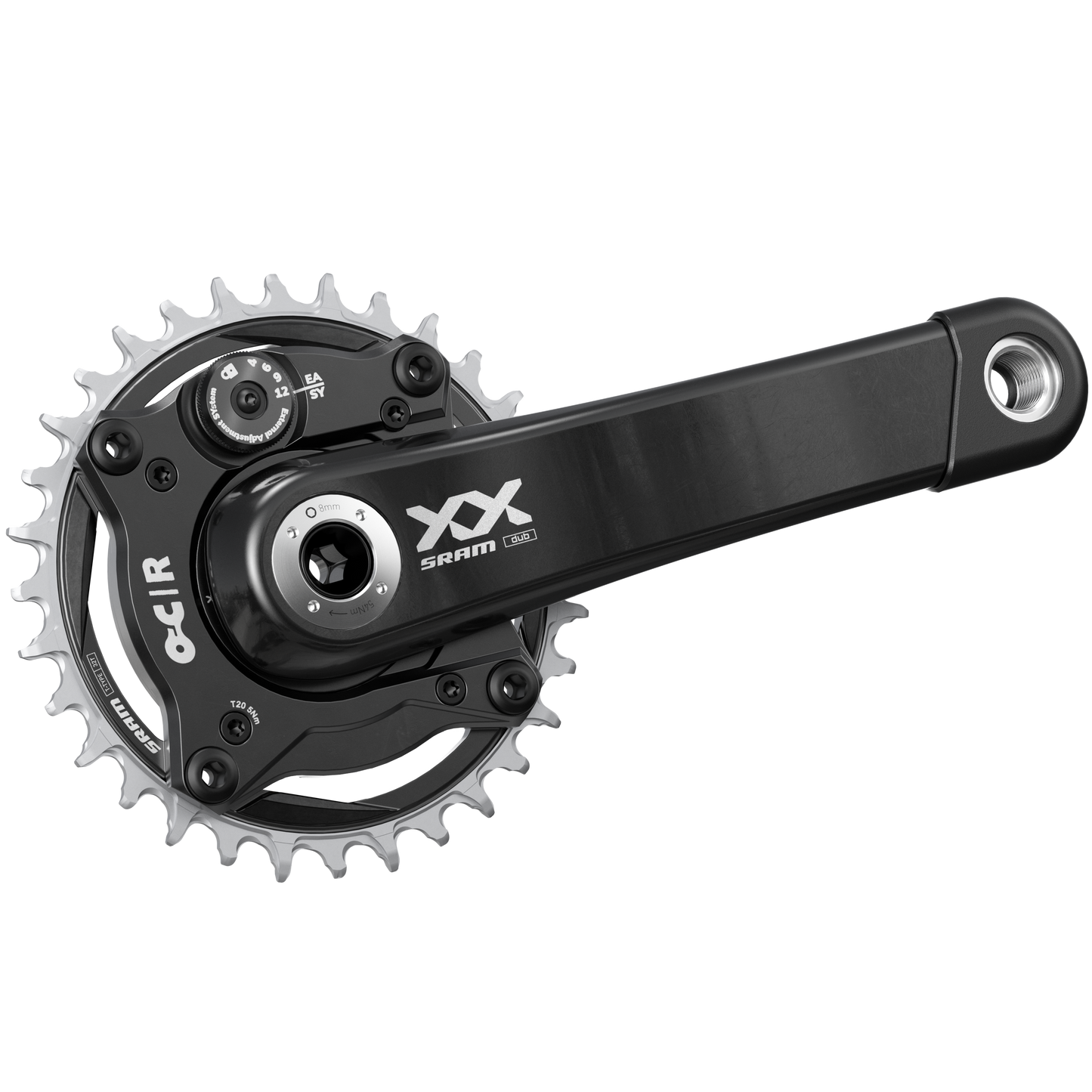

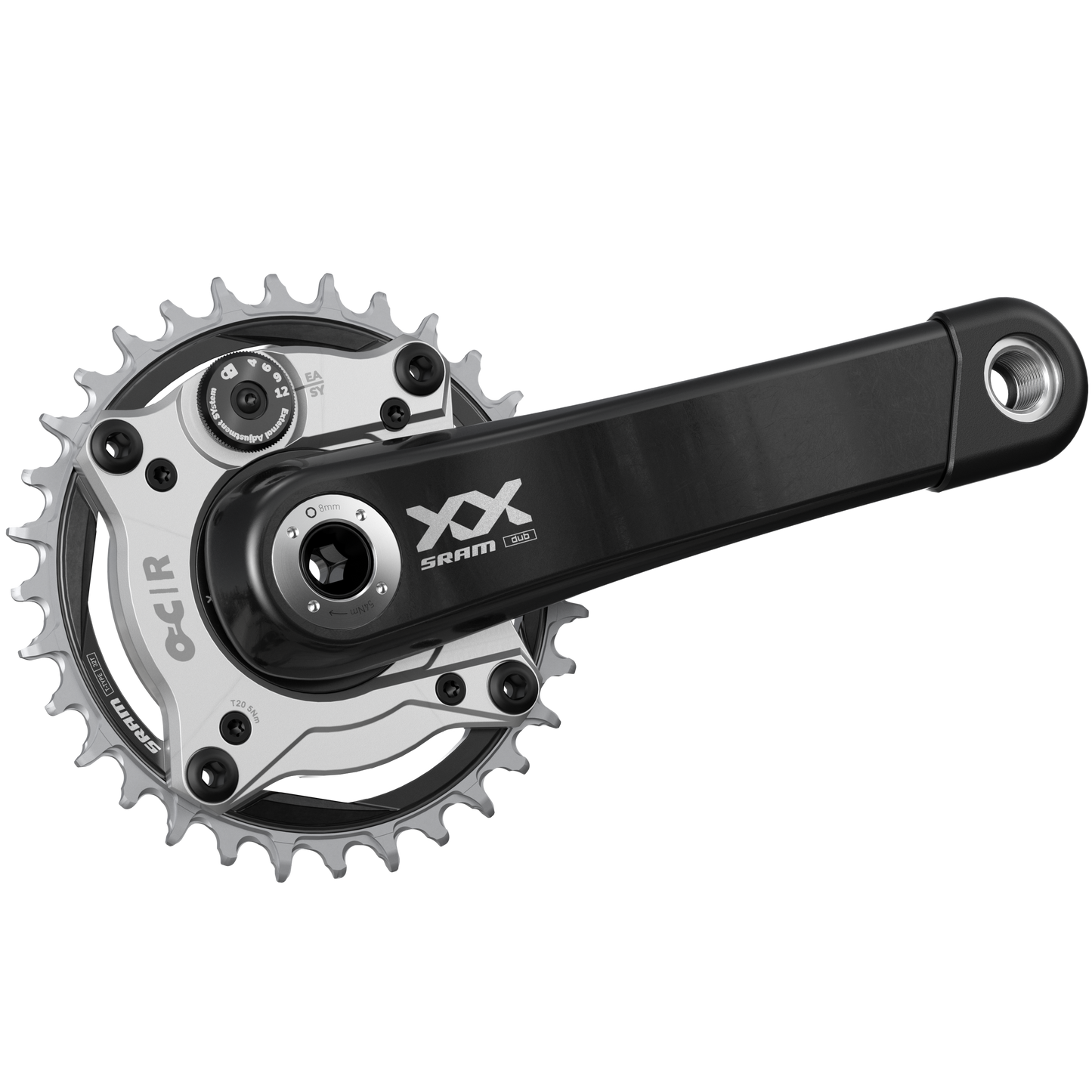

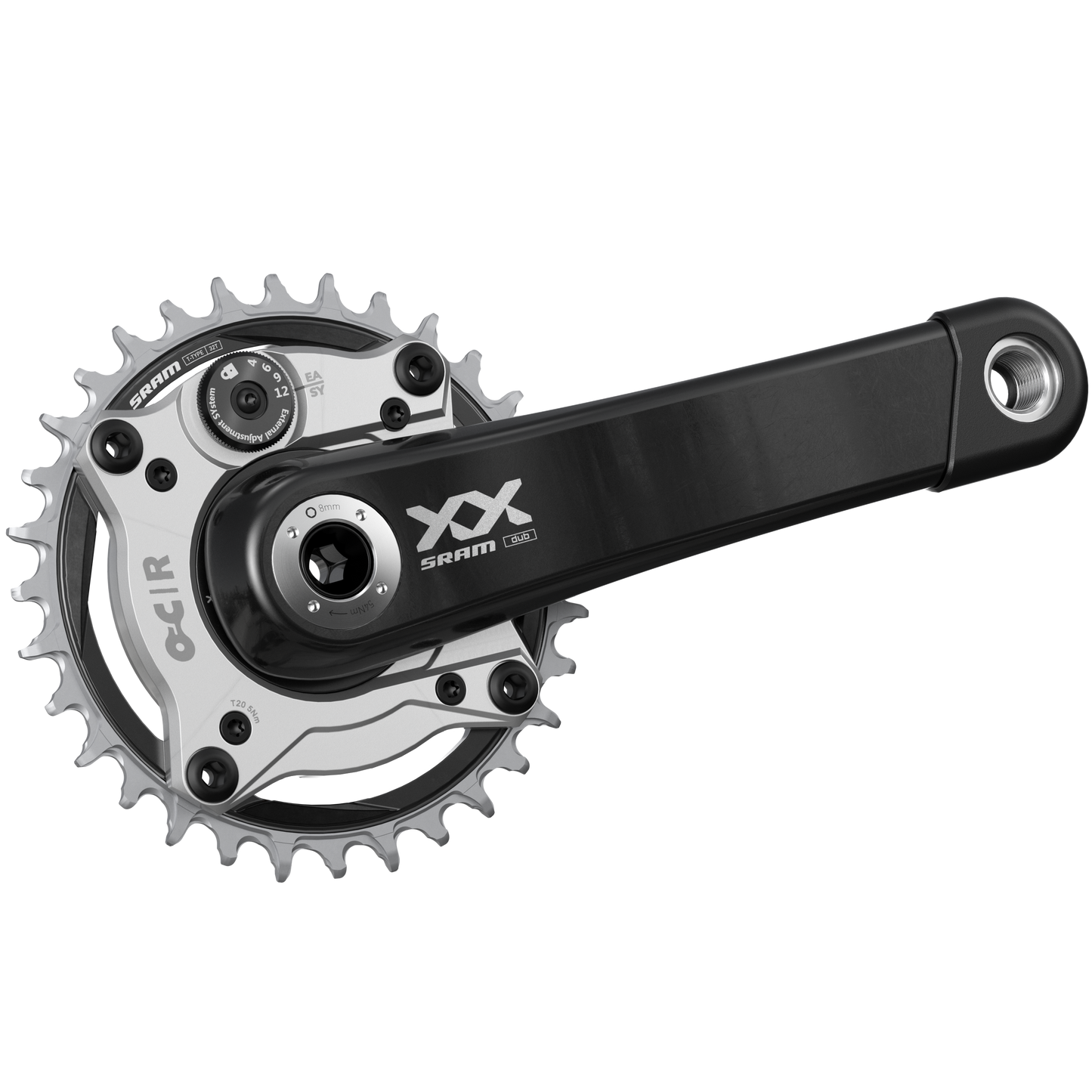

Introducing the Ochain | R, the pinnacle of the Ochain range, meticulously designed for muscular bikes. This innovative product incorporates the sophisticated patented EASY system that empowers riders to fine-tune their riding experience by configuring the ideal "degree of freedom" right from its outer face from 0° up to 12°.
The Ochain | R represents the next evolution of active spiders, seamlessly enabling the chainring to rotate backward, effectively disengaging the transmission from the suspension. This groundbreaking feature not only enhances your overall riding experience but also elevates your bike's performance to unprecedented levels.
Key Details:

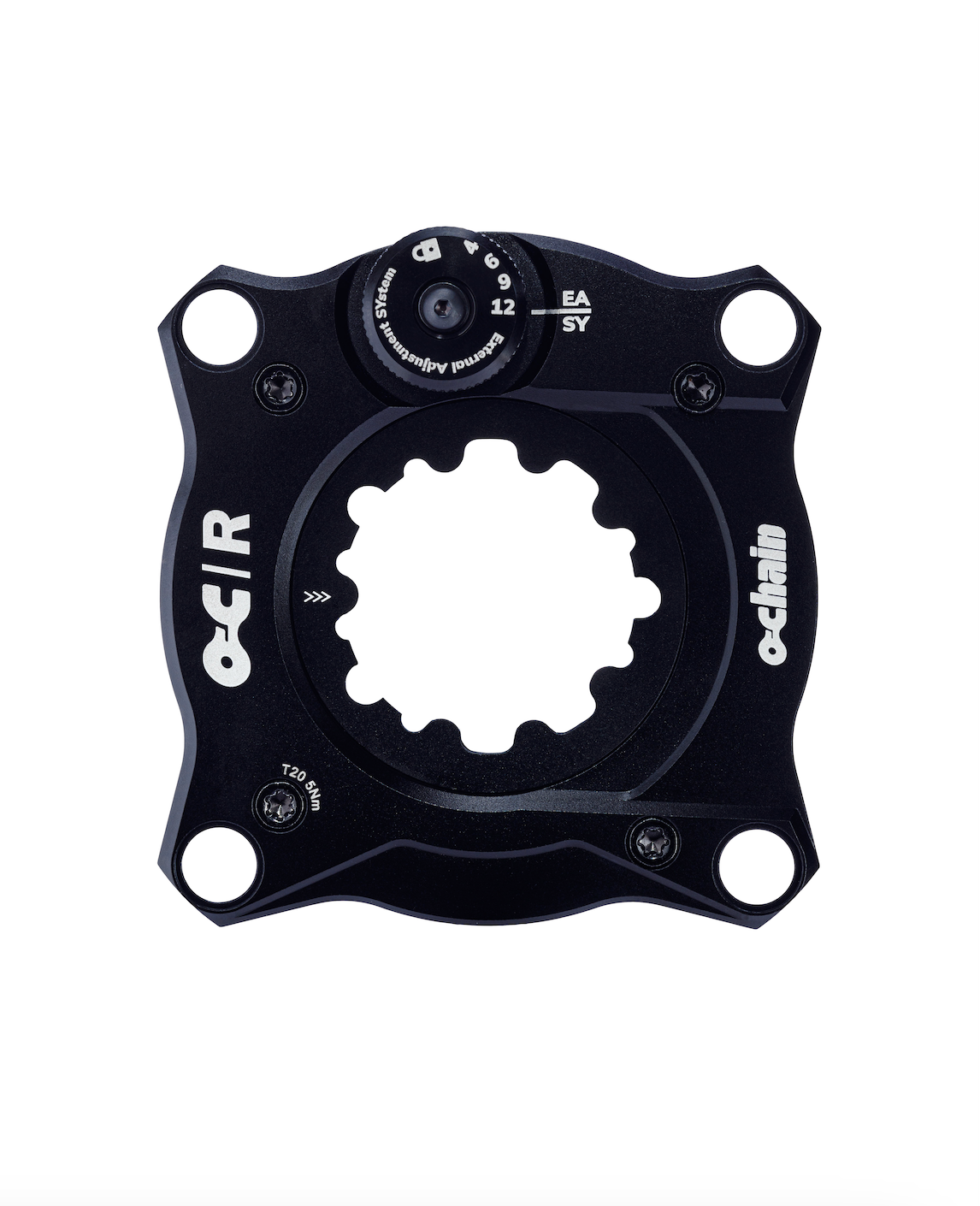

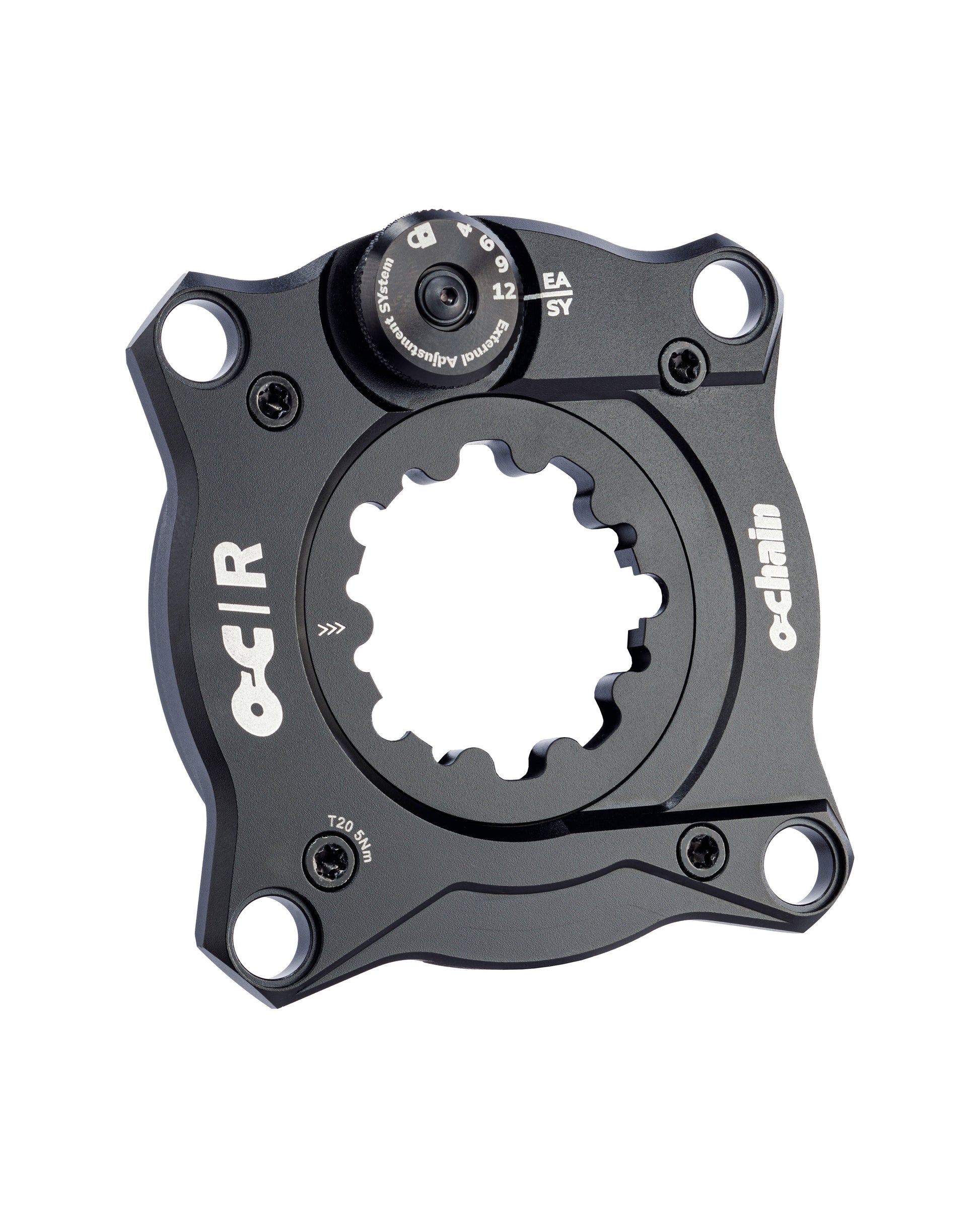

- Customizable Setup: Ochain will come with the EASY system, with the possibility to switch between 4°, 6°, 9° and 12° setups and the possibility to lock out. Tailoring your ride to your preferences.
- Chainring Offset: Boasting a +3mm virtual chainring offset, though it's essential to verify your current chainring offset to check compatibility. With the Ochain adjust kit, you can add +3mm or +4,5mm.
- Material: Crafted from high-quality Al Alloy 7075 T6, ensuring durability and longevity.
- Dimensions: Compact and sleek, measuring 93 mm x 93 mm x 13 mm.
- Weight: Feather-light at just 150 grams,(average weight, depending on the version) minimizing any additional bulk on your bike.

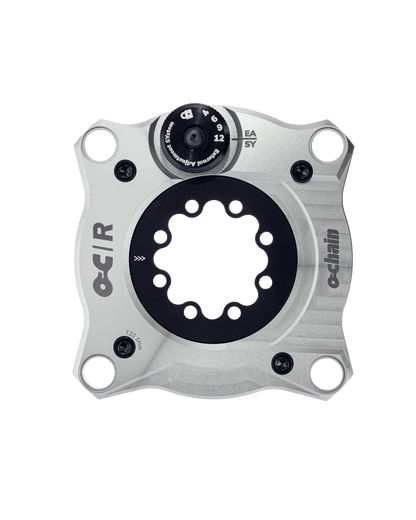

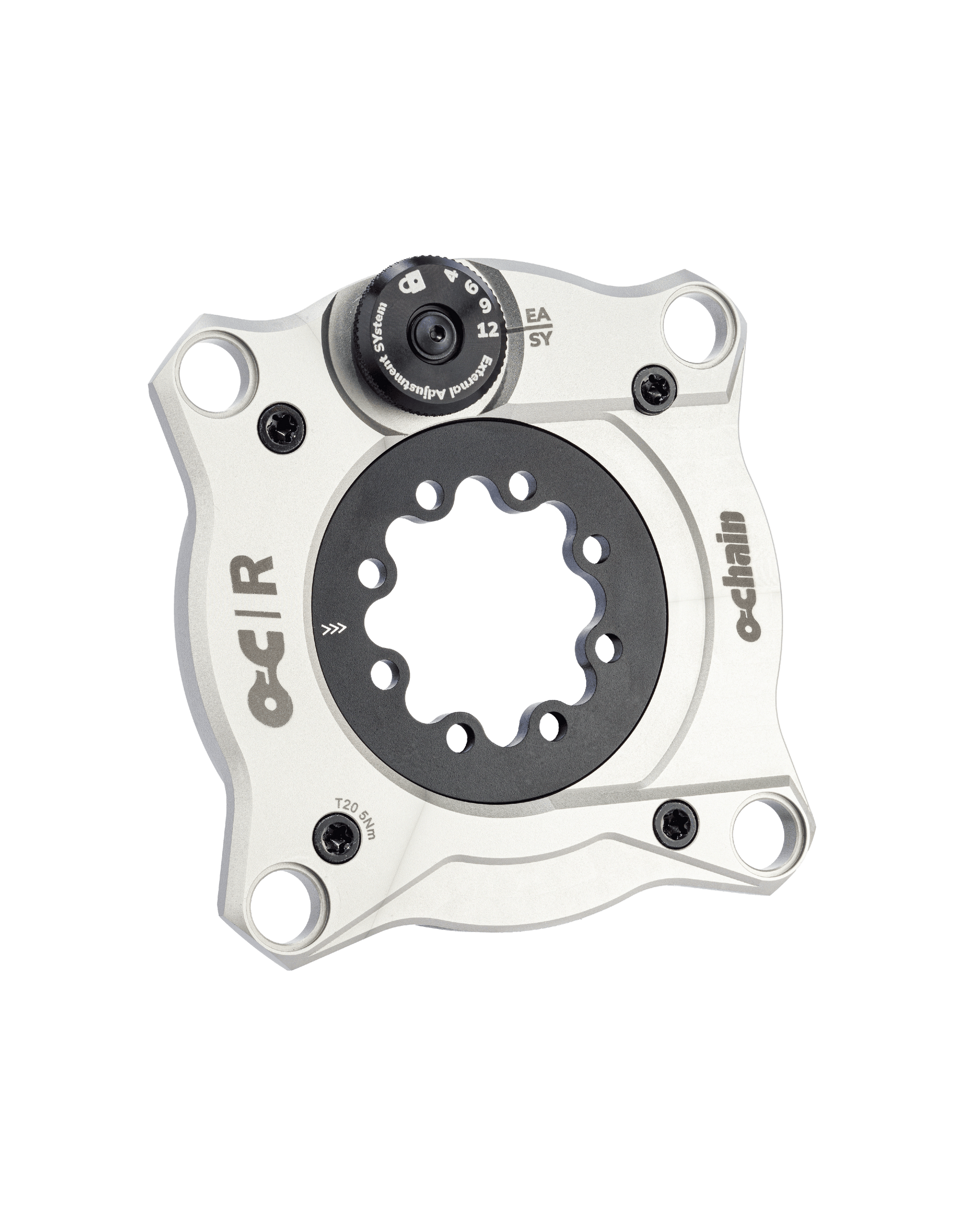

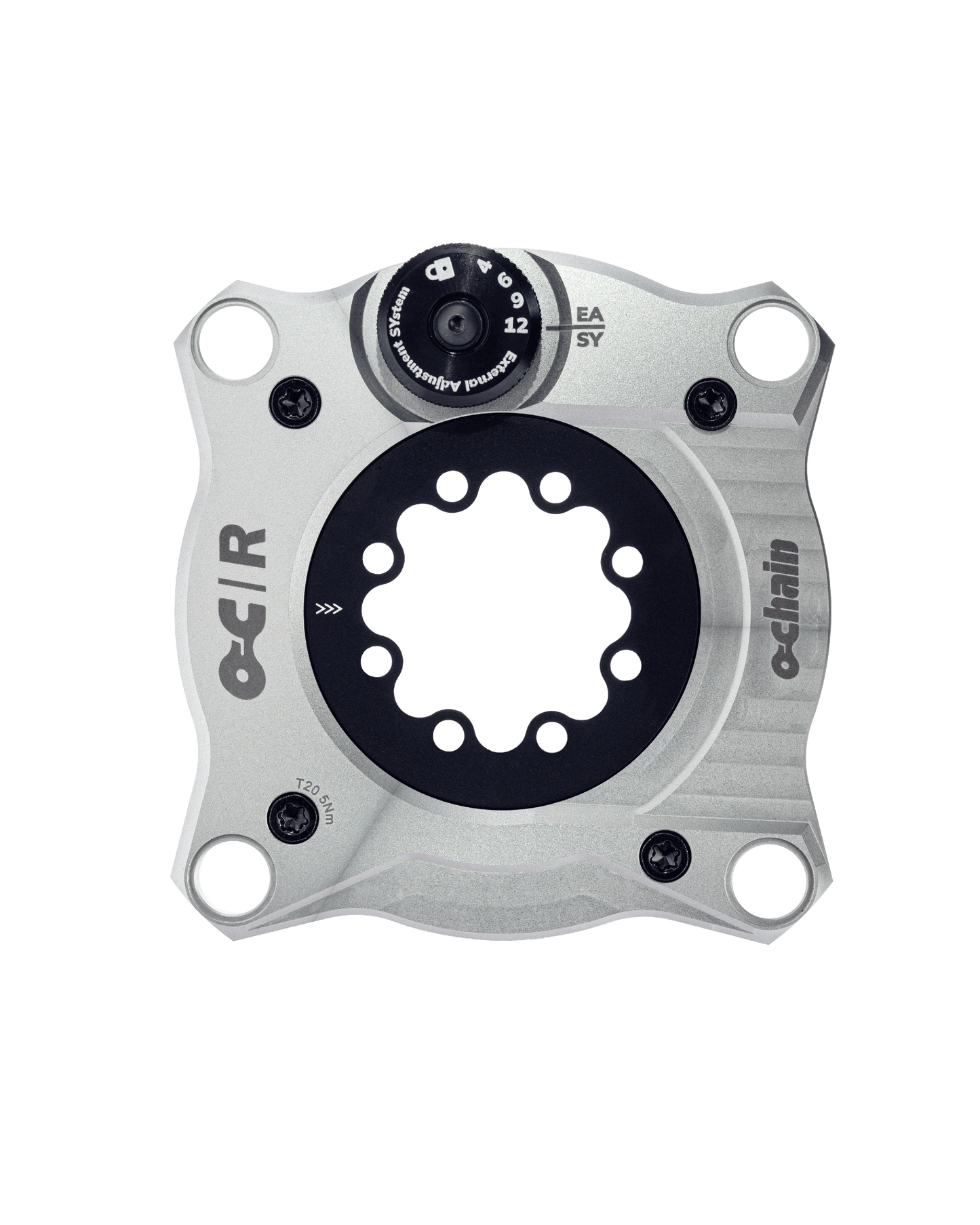

- Sleek Finish: The Ochain comes in a stylish black or silver hard anodized finish, adding a touch of elegance to your bike.
- Standard BCD 104 mm Chainrings: Designed to work seamlessly with standard BCD 104 mm chainrings from 32T
- Weight Limit: Please note that this component has a maximum weight limit for rider and gear weight, set at 120kg.
Compatibility Note
- Exclusive Compatibility: The Ochain nuts (NOT INCLUDED) are guaranteed to be compatible only with our standard BCD 104 chainring, ensuring a perfect fit. Ochain nuts are included in the standard BCD 104 chainring.
- Compatibility Note / Chainguide: Ochain can not guarantee the compatibility with all the chainguide on the market.
- Compatibility Note / Ethirteen cranks: Ochain | R is compatibile just with with Aluminium E13 cranks, so it's not compatible with E13 carbon cranks.
- Ochain is NOT COMPATIBLE with the Shimano Saint cranks
USER MANUAL
The thing does what it says on the tin and thats great, though there are some design shortcomings:
1. the timing of the spider has a positive offset at the engagement point. This should be a negative offset. It would allow compatibility with oval chainrings. All it would take is that the direct mount would be -12 degrees compared to the current product, everything else stays.
2. the rubber o ring under the selector is prone to get out of its groove (requires disassembly to fix), because the selector gets bent under the spring/elastomer load when used unless one is very careful to press the pedal on the bike when selecting very consistently. It would be enough to use a square cross-section o ring with more thickness to avoid this.
also, some of us would not mind to pay double for a forged carbon / aluminium composite version :)

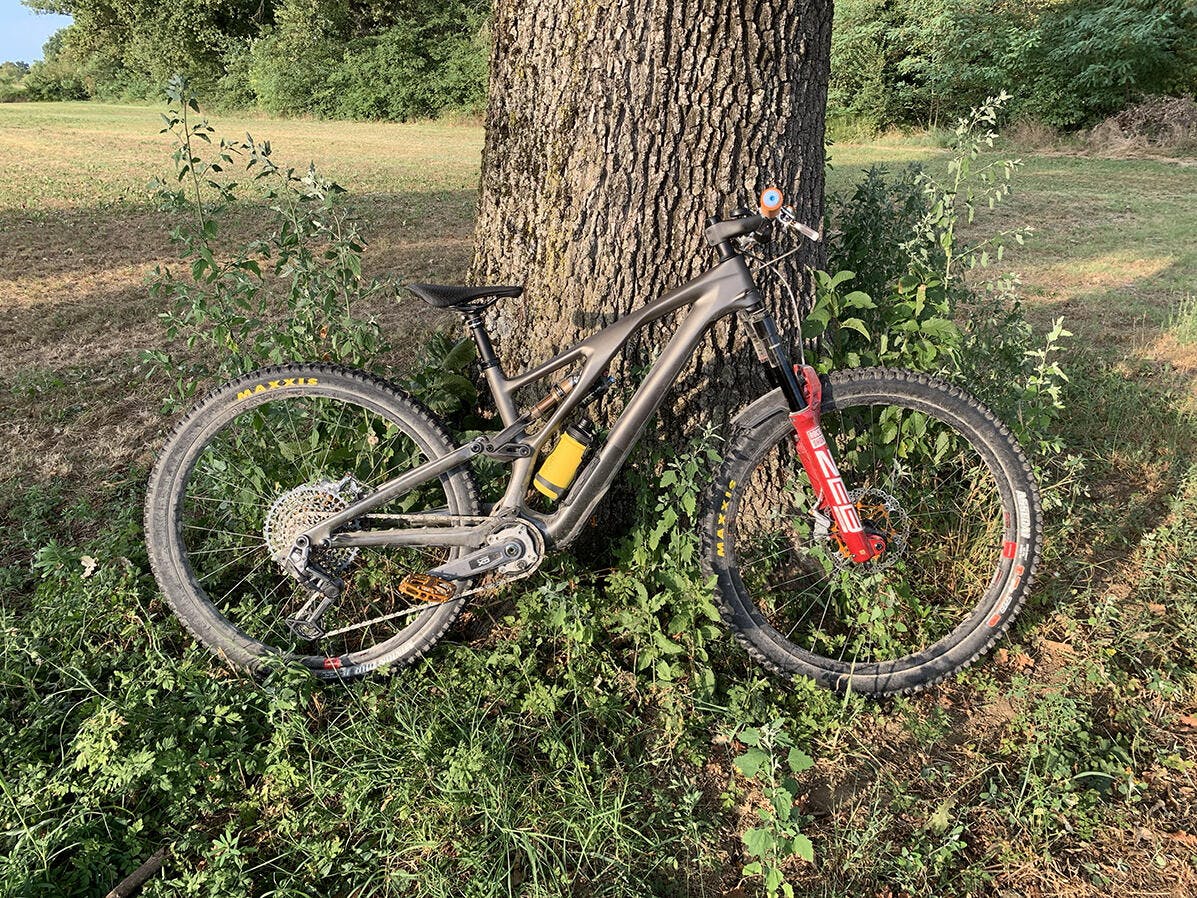

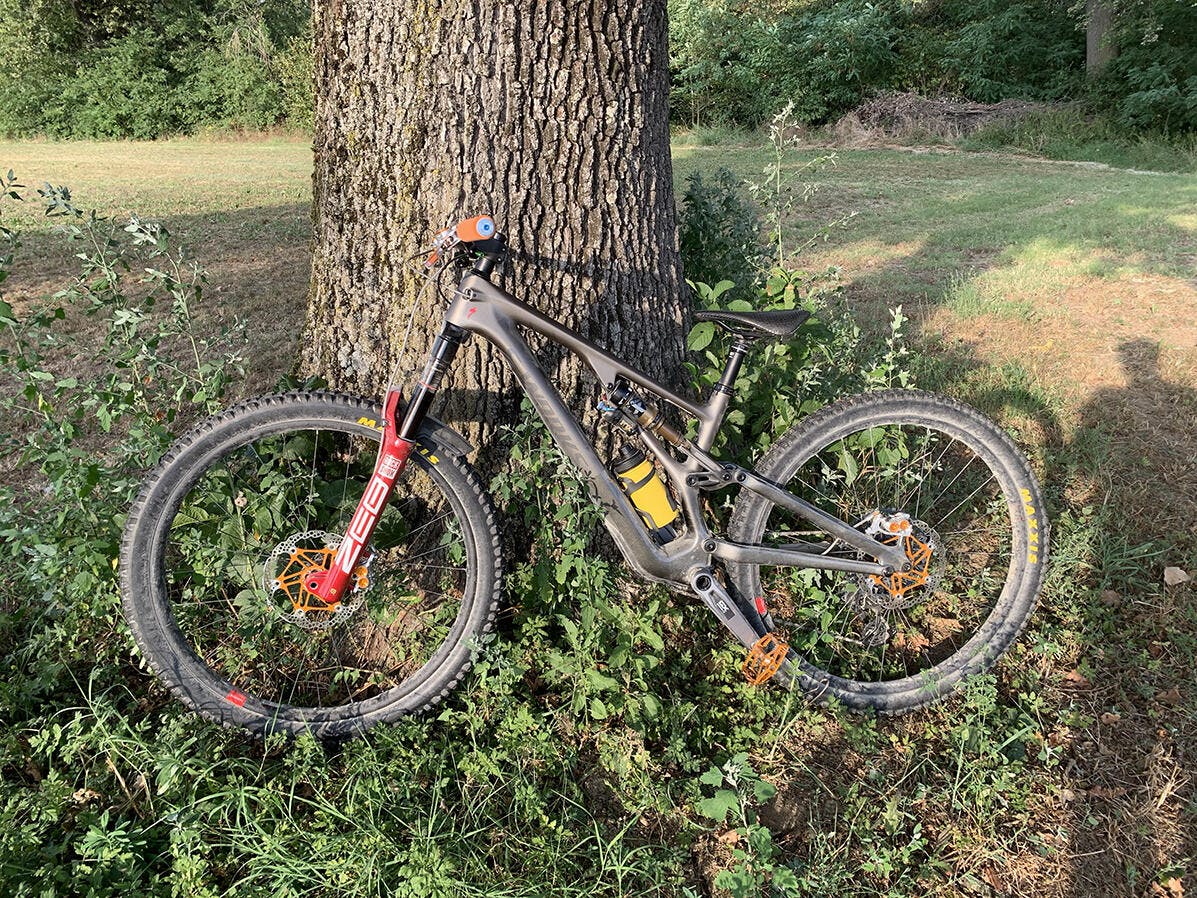

Bought for my canyon spectral 2019:
+ rear seems to be glued to the ground now
+ reduce a lot the fatigue during long alpin enduro tour with very long descent
- import fees are excessive.
- UPS is sh#$*% for Switzerland
- a bolt was missing

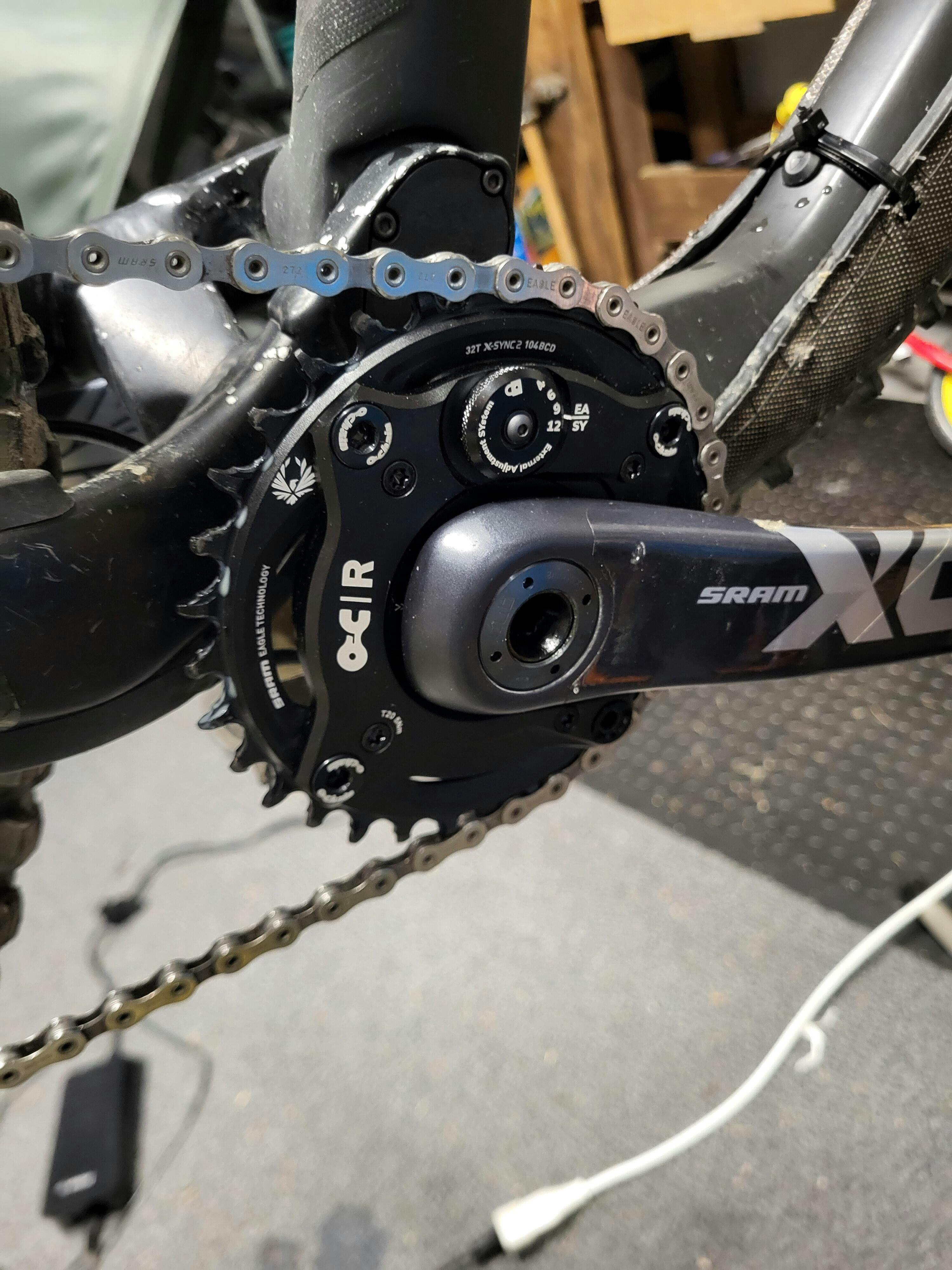

Mounted Ochain R with titanium chainring nuts on Sram GX T Type inmy new custom bike and feel instantly the difference, especially downhill. Top quality product finished to perfection.
The product is good, I also bought the service kit, but there is no manual.... I have had several emails telling them and so far no response, I don't know how I am going to do it when I have to do the maintenance......
Love the product. Makes a huge difference in pedal feedback and suspension sensation.
